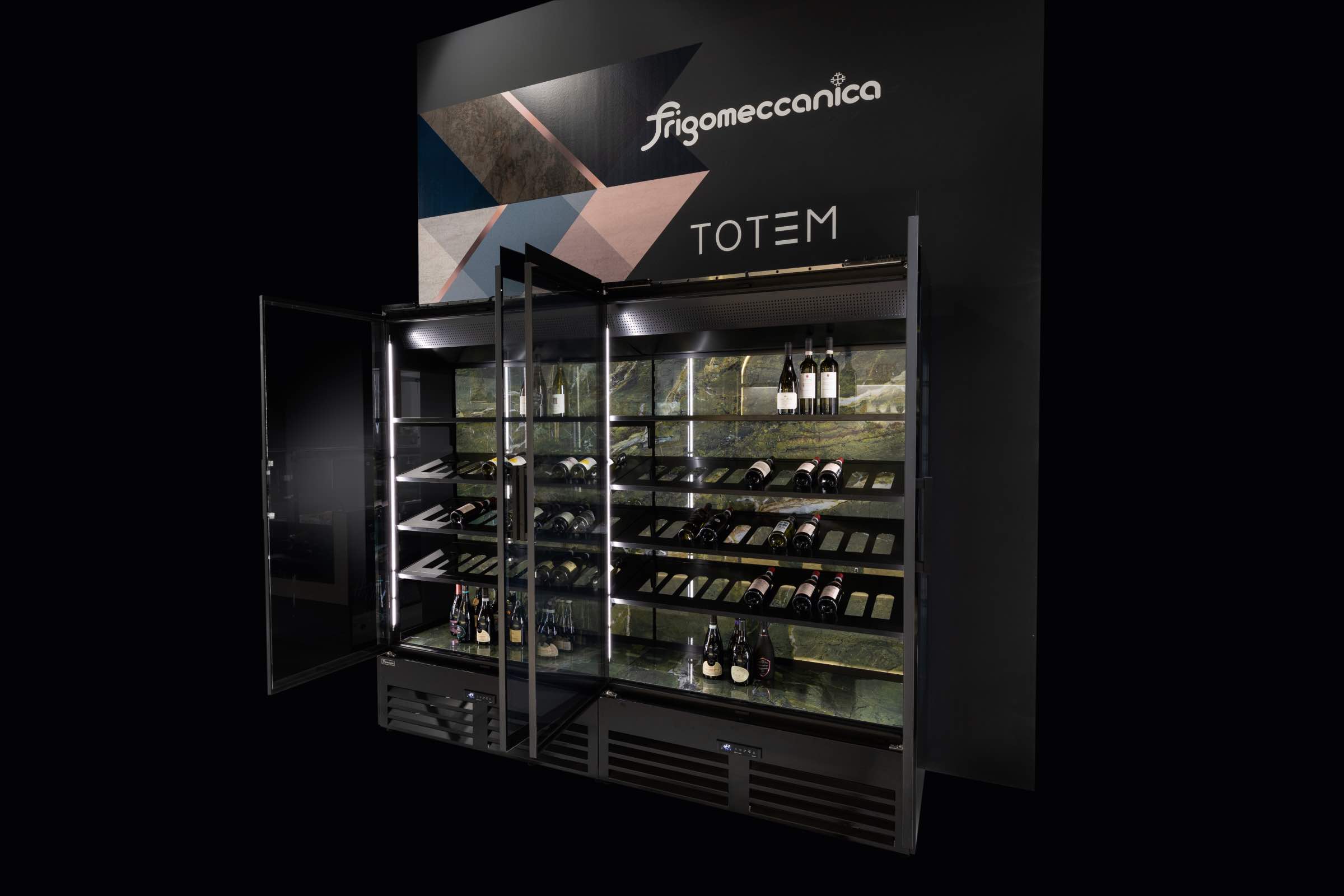

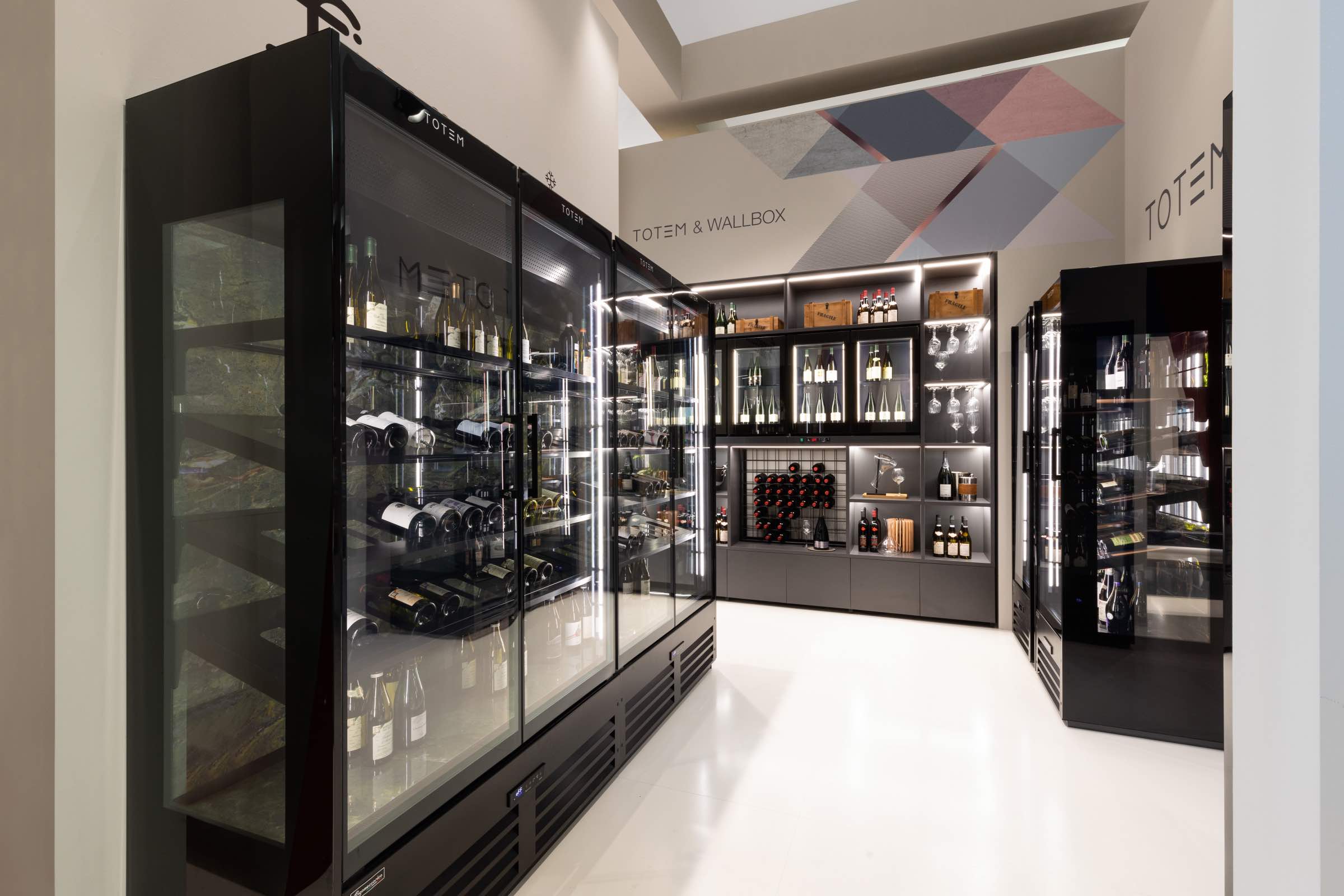

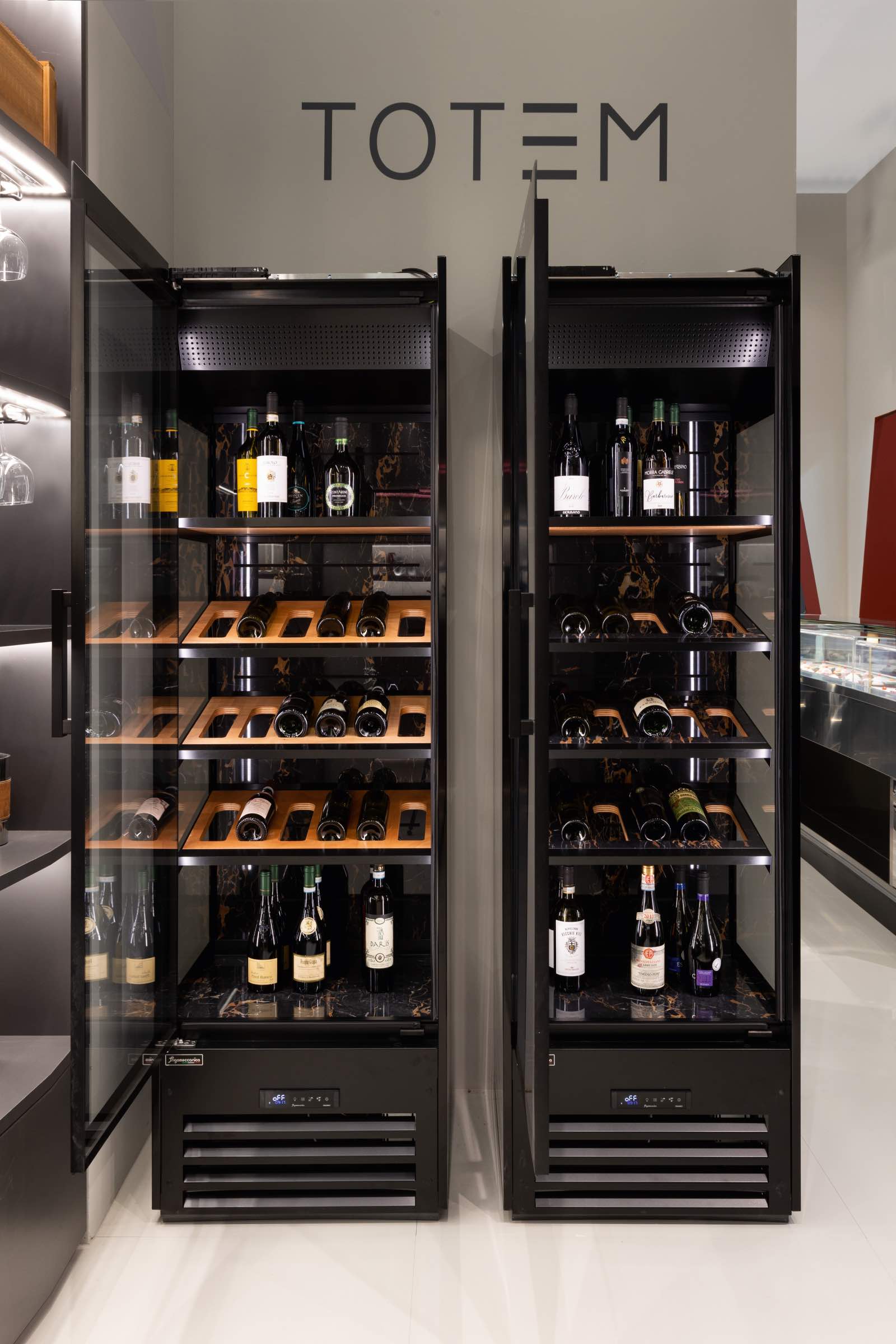

In hospitality, the wine list is read with the eyes as much as with words. Totem Wine is the vertical display cabinet that enhances and preserves every bottle, combining professional functionality with unmistakable style: a column of glass and light that turns labels into a design feature, from wine shops to fine dining restaurants.
Features
Design and structure

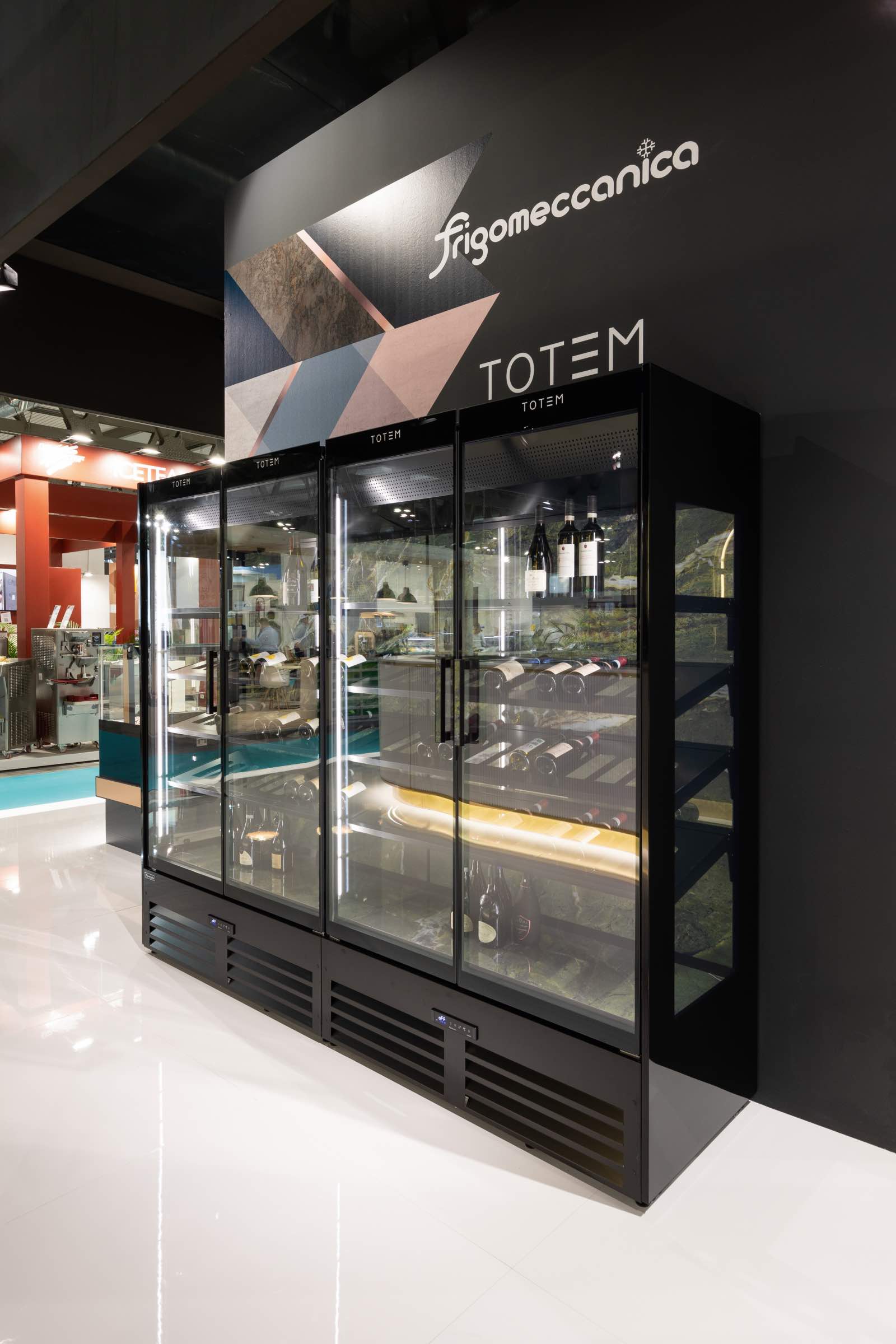

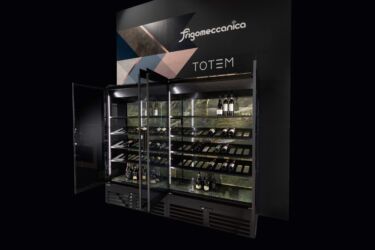

This refrigerated wine display develops vertically, 2150 mm high and 693 mm deep, and comes in four lengths: 670, 1290, 1915 and 2540 mm, measurements that include the insulated glass side panels. The triple-glass door with airtight seal is designed for energy savings and for very humid environments.
Maxi and Expo versions

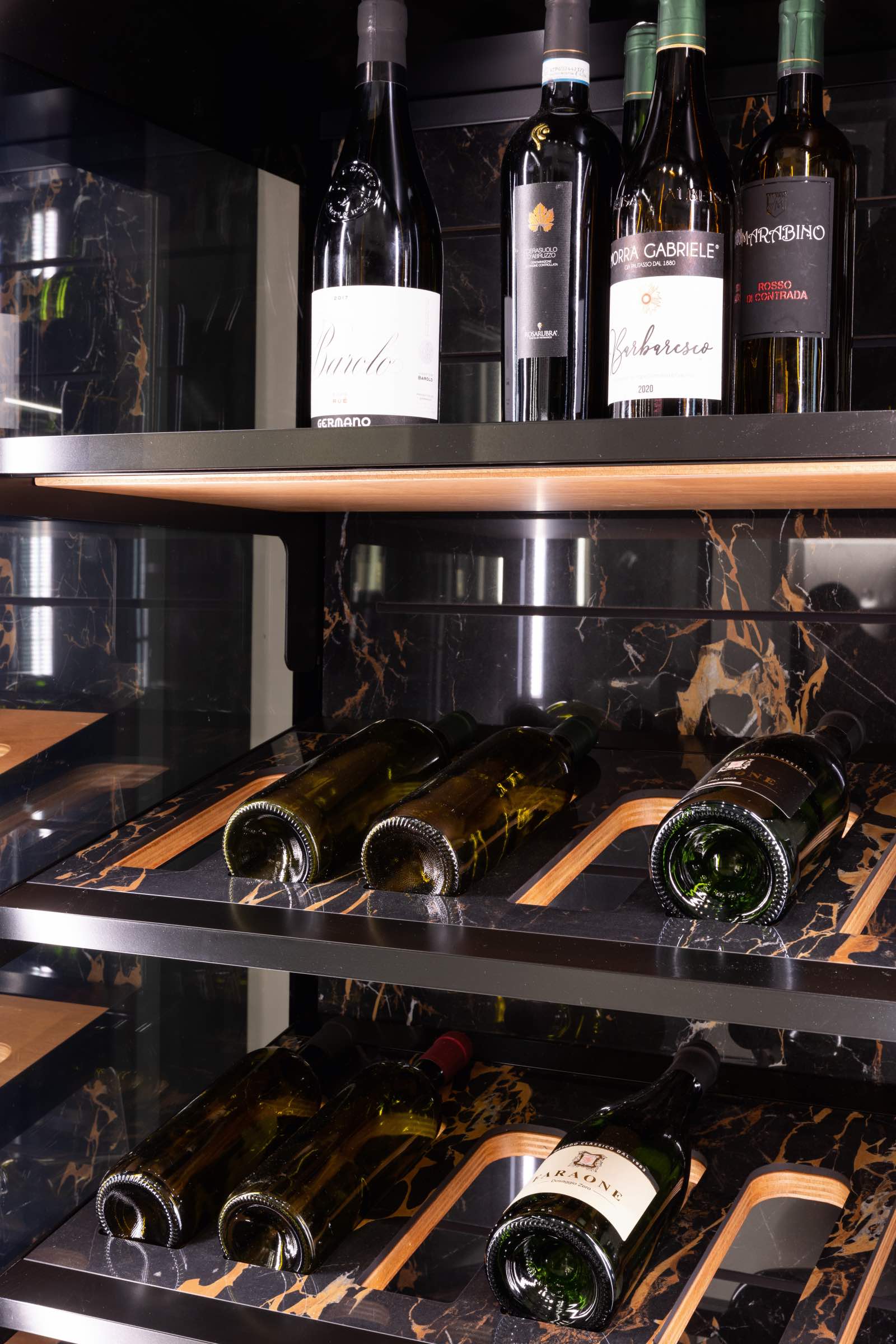

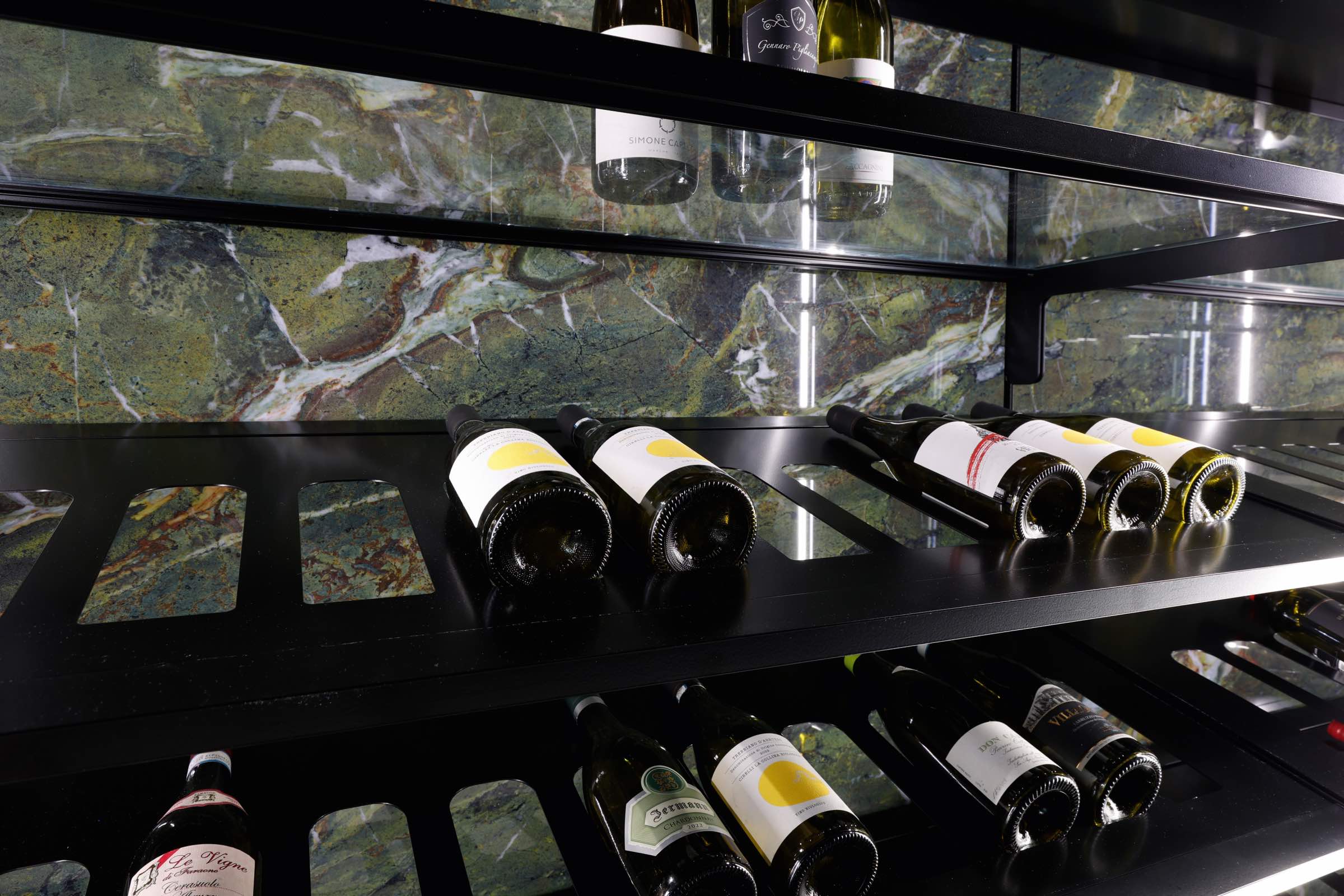

The Maxi version ensures maximum display capacity, with a high concentration of bottles in a single showcase: 112, 240, 368 and 496 Bordeaux-type bottles depending on length. Internal shelves are made of glass as standard. The Expo version instead prioritises label visibility with a more selective capacity and standard inclined, shaped shelves in black painted stainless steel; here the number of bottles varies according to the shelf chosen.
Refrigeration and installation
Ventilated refrigeration ensures proper preservation of the displayed bottles, with an operating temperature from +2 to +18 °C: a range suited to white, red and sparkling wines. The unit works with a single internal temperature control and is designed for ducted installation. The condensing unit can be built-in or remote, depending on the plant requirements of the venue.
LED lighting

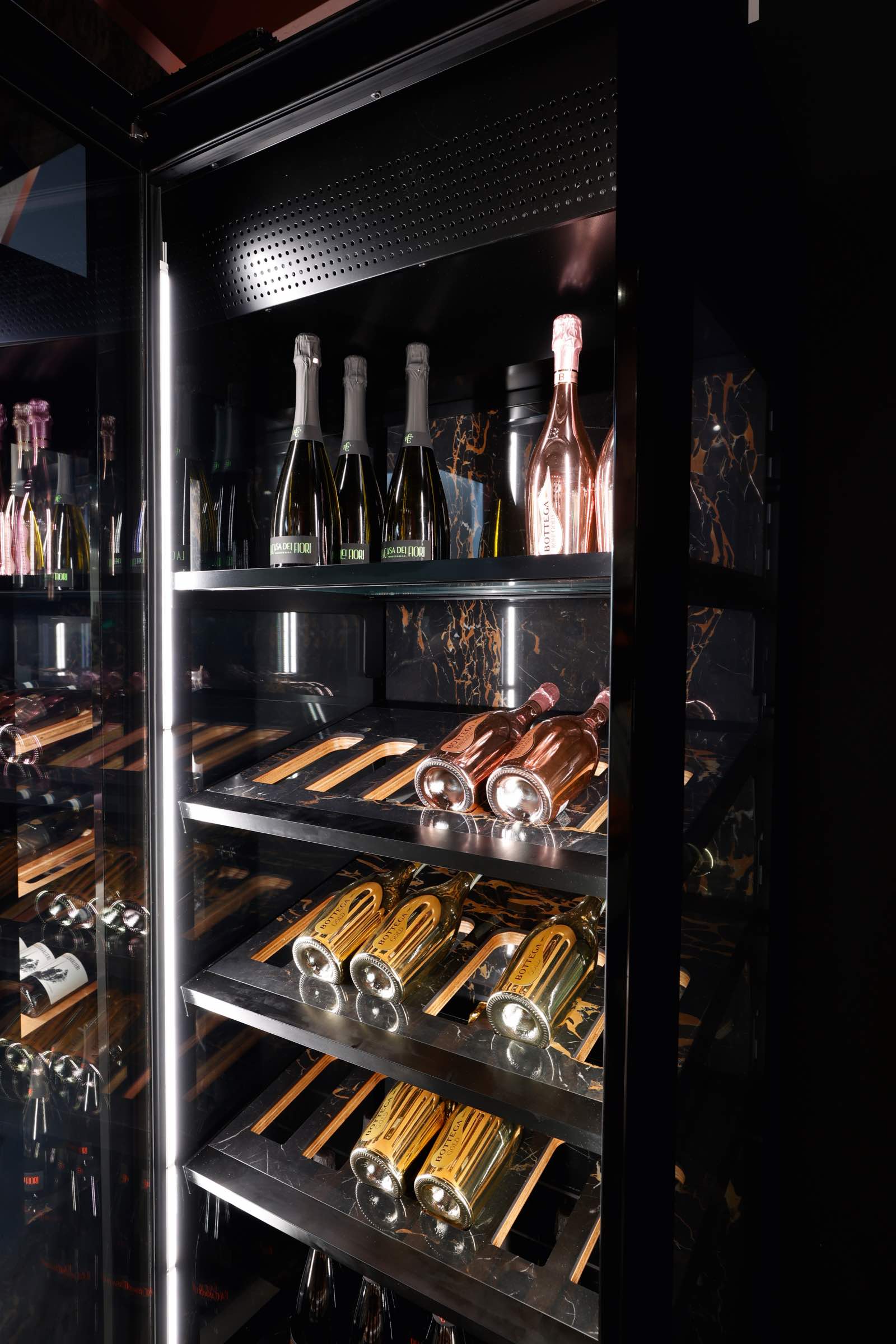

LED lighting brings out the labels and creates a refined atmosphere. The dynamic system switches colour temperature automatically: warm 1600 °K light enhances the storage of fine wine while the bottle is at rest, while opening the door shifts it to 4000 °K for clearer visibility during selection and service. An adjustable lighting system is available as an alternative, controlled by a remote control with integrated touchpad for setting colour temperature and light intensity.
Shelves and internal layout

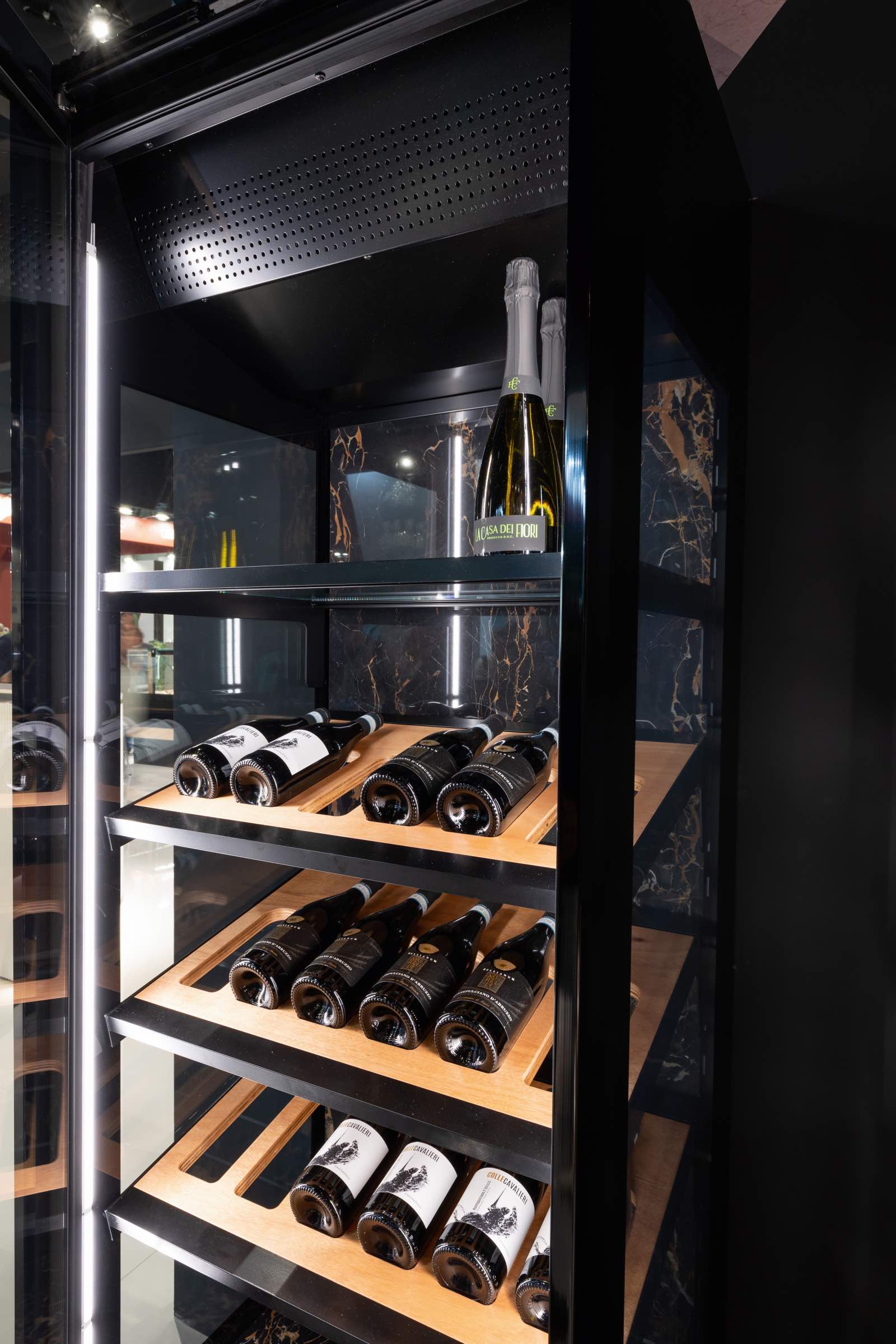

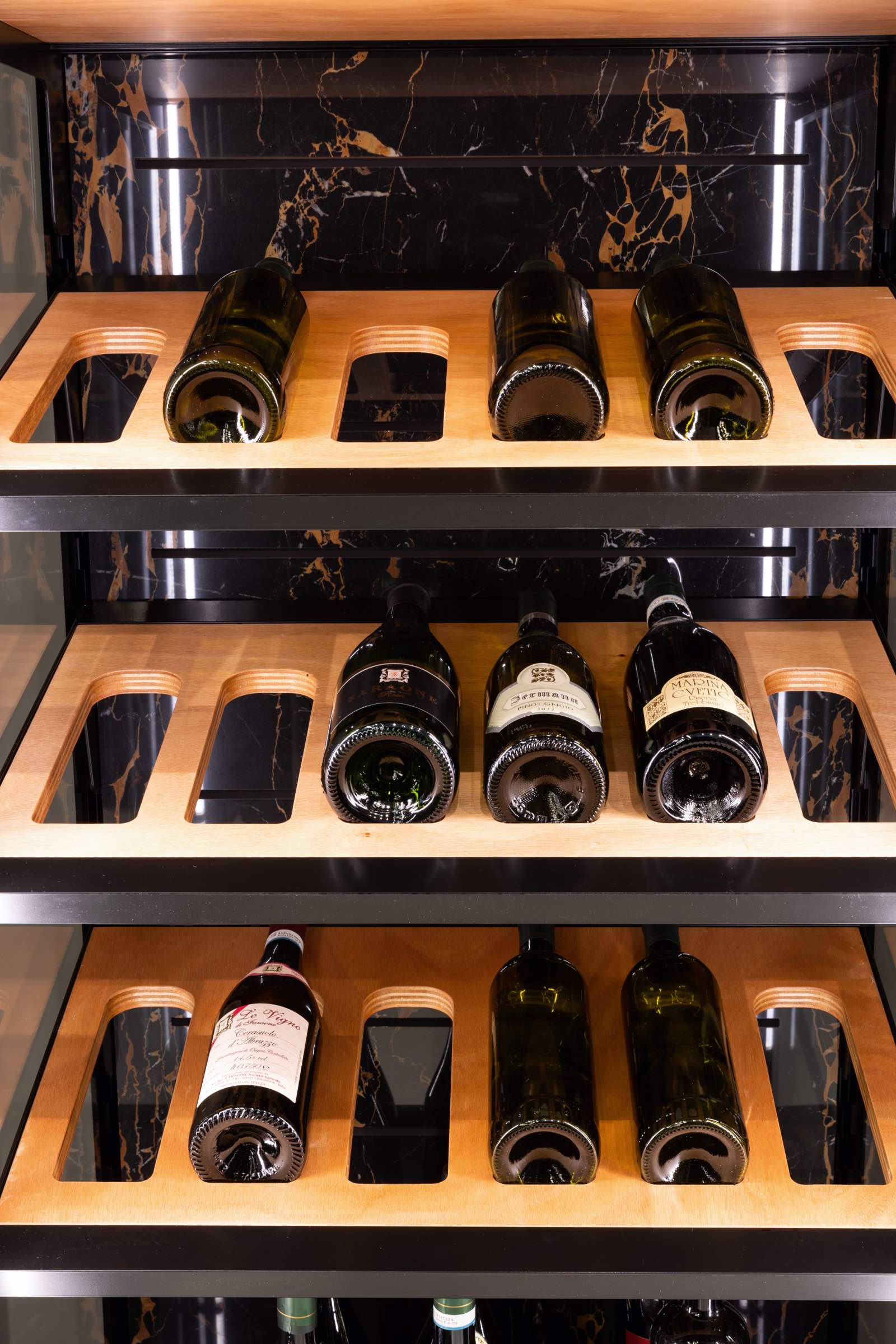

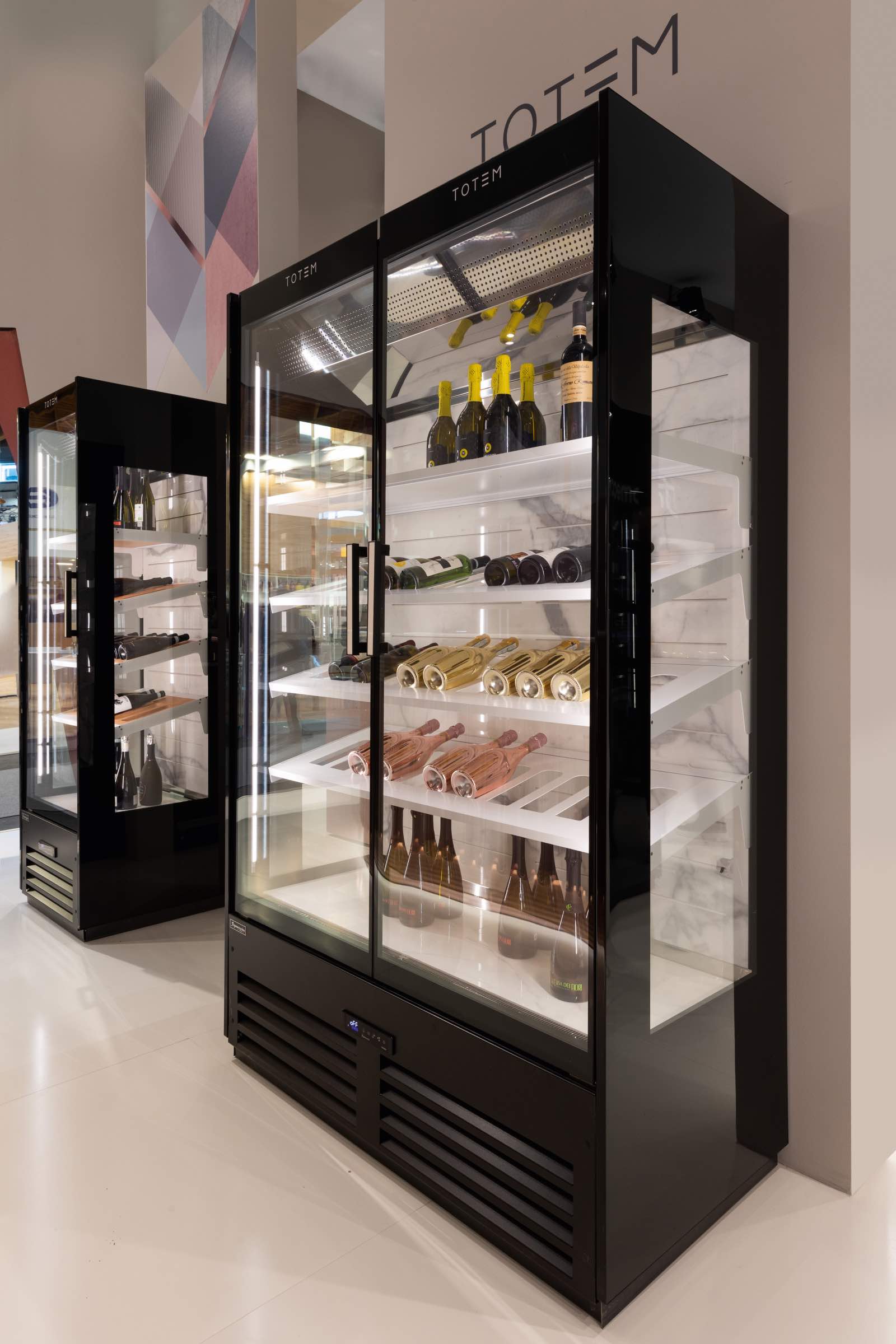

Shelves are supplied as standard in glass or painted stainless steel sheet. Optional shelves in porcelain stoneware, teak-coloured multilayer wood and transparent polycarbonate can be requested, adapting the internal layout to bottle formats and to the character of the venue.
Finishes and customisation

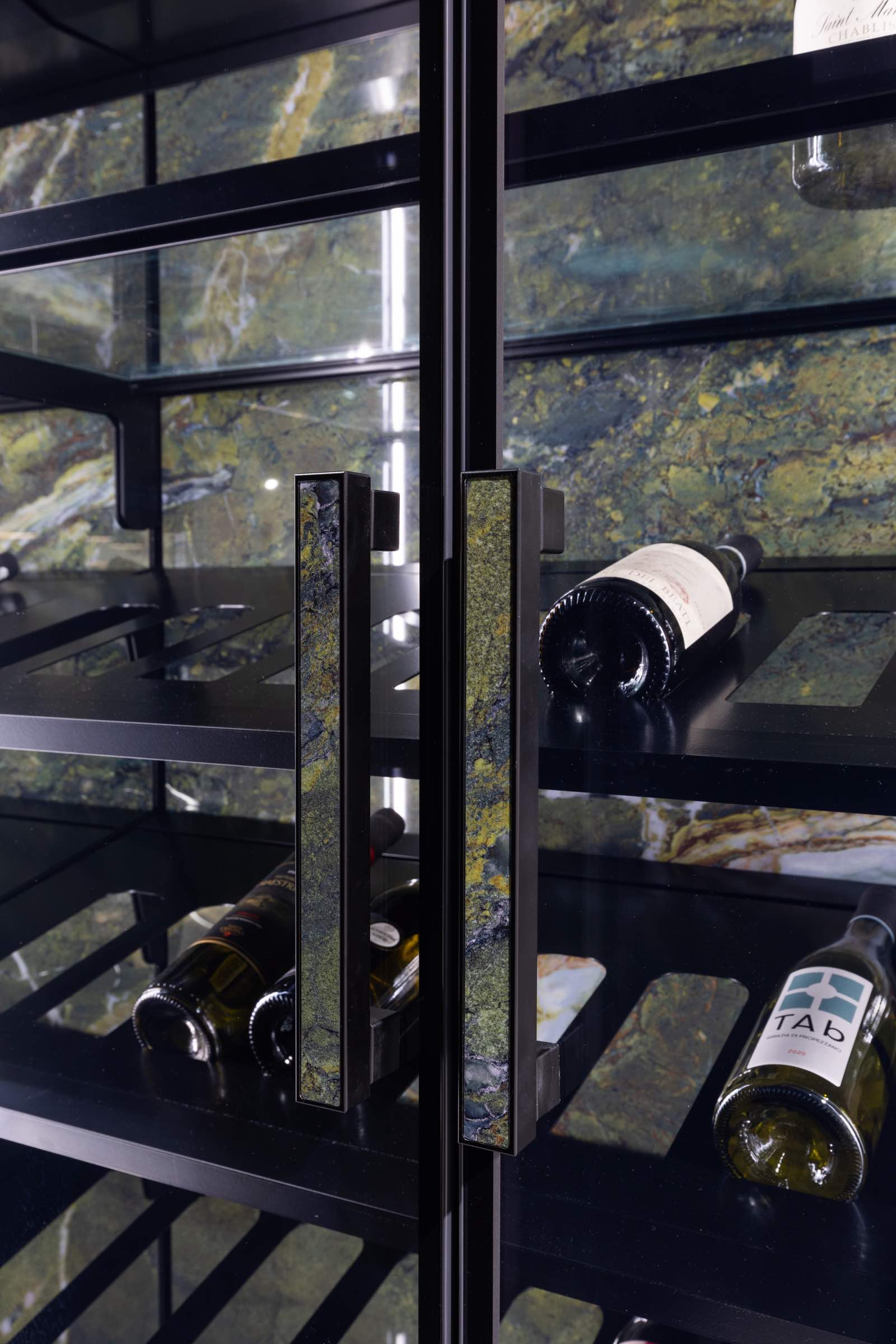

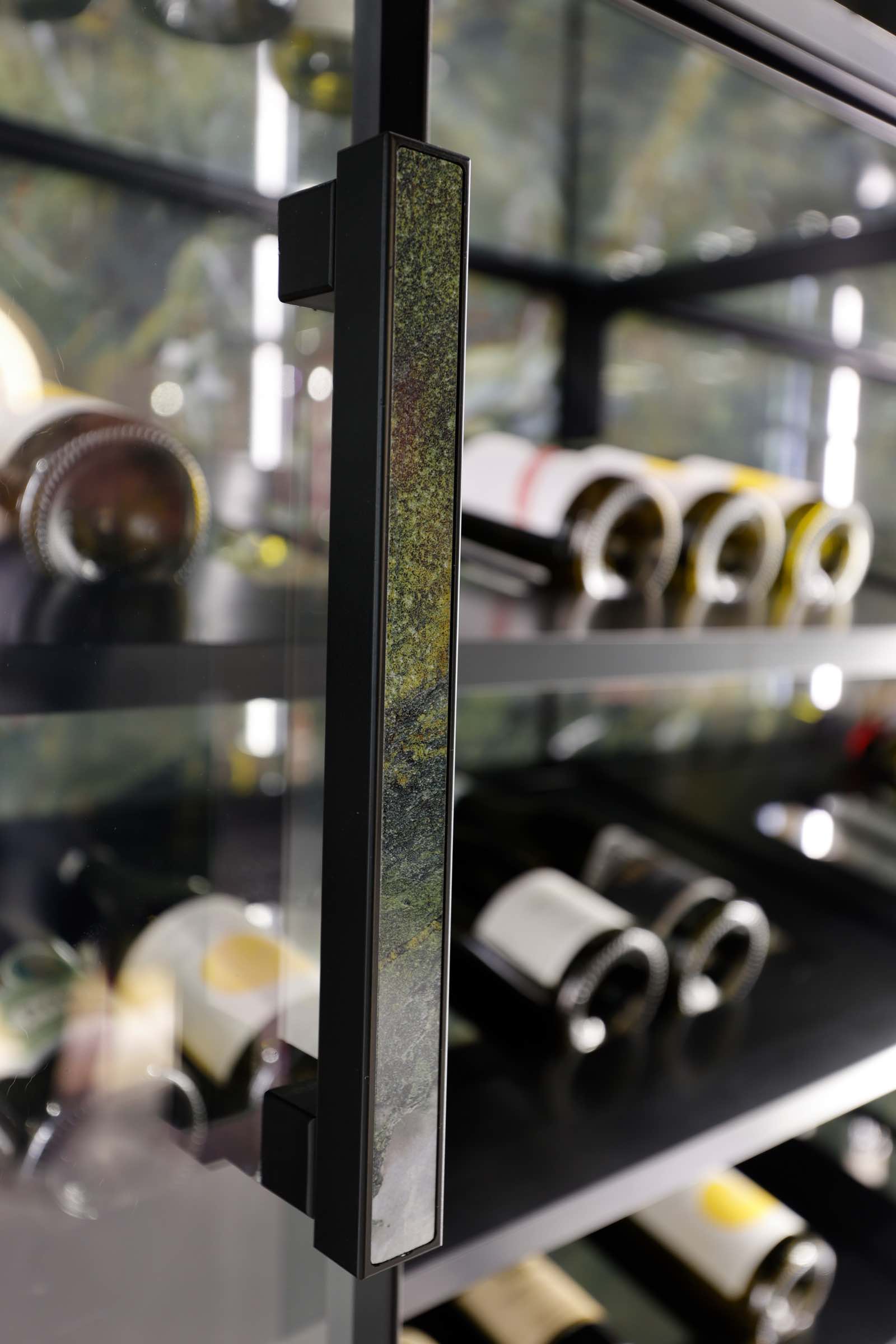

Customisable finishes allow the cabinet to adapt to any setting. Porcelain stoneware customisations are available on request for handles, shelves, backsplashes and base surfaces, with decors including Amazonite, Blu Brasil, Ocean White, Nero Ghibli, Onice Pink, Onice Verde, Onice Nero, Onice Reale, Breccia Medicea, Extra White Venato, Moka and Wood Plank. The standard handle is round, in black or transparent polycarbonate; the optional handle is square, in transparent polycarbonate or black aluminium, with a customised insert.
Display that becomes service
Capacity, correct temperature and calibrated light: the vertical wine display puts the cellar in front of the guest and keeps it ready for service, with an aesthetic language that speaks to the dining room.
FAQ
What kind of display cabinet is Totem Wine and where is it used?
Totem Wine is a vertical refrigerated wine display cabinet designed for wine shops, fine dining restaurants and foodservice venues. Its ventilated refrigeration ensures proper preservation of the displayed bottles, operating between +2 and +18 °C with a single internal temperature control, suitable for white, red and sparkling wines.
Which versions are available and how do they differ?
Totem Wine comes in two versions, Maxi and Expo. Maxi is built for maximum display capacity, concentrating a high number of bottles within a single showcase, with glass internal shelves as standard. Expo prioritises label visibility with a more selective capacity and standard shelves that are inclined and shaped, in black painted stainless steel.
How many bottles can be displayed and what sizes are offered?
The Totem Wine range includes four models: TW1P at 670 mm, TW2P at 1290 mm, TW3P at 1915 mm and TW4P at 2540 mm, all 2150 mm high and 693 mm deep; the stated lengths include the insulated glass side panels. In the Maxi version, total capacity with Bordeaux-type bottles is 112, 240, 368 and 496 bottles respectively.
How does the lighting enhance the bottles on display?
Totem Wine uses LED lighting that brings out the labels and creates a refined atmosphere. The dynamic system switches colour temperature automatically: warm 1600 °K light is designed to enhance the storage of fine wine while the bottle is at rest, while opening the door shifts it to 4000 °K for clearer visibility during selection and service.
How can the colour temperature of the light be adjusted?
Totem Wine can alternatively be equipped with an adjustable lighting system, controlled by a remote control with integrated touchpad. It allows colour temperature and light intensity to be set according to the desired atmosphere: from very warm white, ideal for enhancing fine wines, to more natural or cooler tones for a more technical, display-oriented visibility.
Which shelves come as standard and which are available on request?
Standard Totem Wine shelves are made of glass or painted stainless steel sheet, depending on the version. Optional shelves are available in porcelain stoneware, teak-coloured multilayer wood and transparent polycarbonate. In the Expo version, the number of bottles that can be stored may vary depending on the type of shelf used.
Which bespoke finishes can be requested?
Totem Wine offers optional porcelain stoneware customisations on request for handles, shelves, backsplashes and base surfaces. Available decors include Amazonite, Blu Brasil, Ocean White, Nero Ghibli, Onice Pink, Onice Verde, Onice Nero, Onice Reale, Breccia Medicea, Extra White Venato, Moka and Wood Plank.
What handles are available and how can they be personalised?
The standard Totem Wine handle is round, in black or transparent polycarbonate. An optional square handle is available in transparent polycarbonate or black aluminium, with a customised insert. Handles are also among the components that can be produced in porcelain stoneware on request, matching shelves, backsplashes and base surfaces.
How is the door built and what does it offer in very humid rooms?
Totem Wine is fitted with a triple-glass door with airtight seal, a solution designed for energy savings and suited to very humid environments. The side panels are made of insulated glass and are included in the catalogue lengths, which range from 670 to 2540 mm.
How is the condensing unit handled at installation?
The Totem Wine condensing unit can be built-in or remote, according to the plant requirements of the venue. The cabinet is also designed for ducted installation and works with a single internal temperature control; the ventilated refrigeration system ensures proper preservation of the displayed bottles.
